Low-Pressure 5.6x12.35m Multipurpose Large Inflatable Quick Deploy Airtight Tent-Yangzhou Mailenda Outdoor Products Co., Ltd.

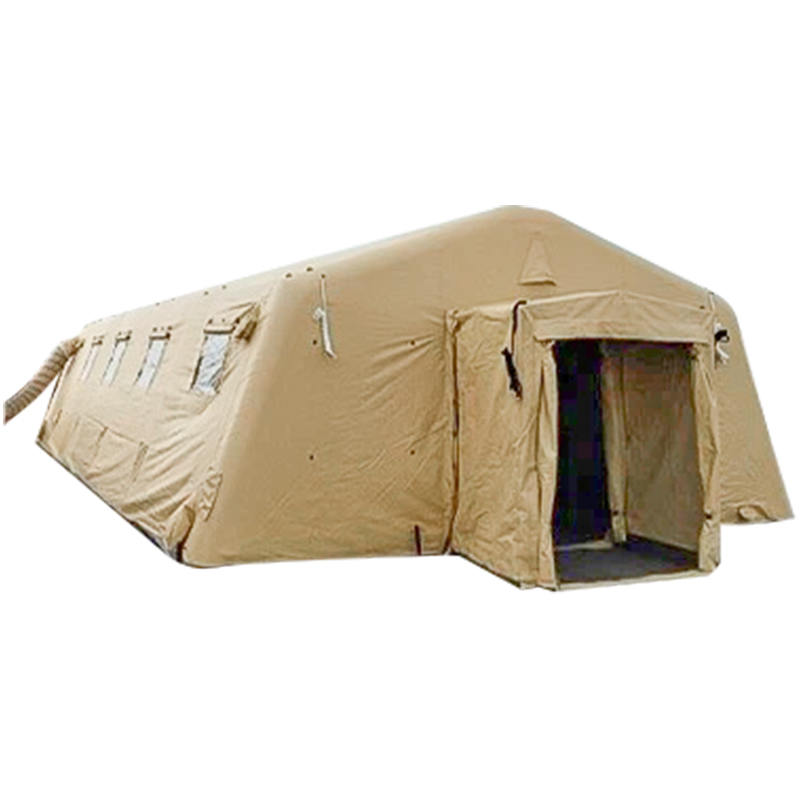

Low-Pressure 5.6x12.35m Multipurpose Large Inflatable Quick Deploy Airtight Tent

A good and quick respond shelter for emergency situations.
The spacious groundsize can accommandate 15 people and provide enough space for bed and all kind of equipment. It can be used for hospital; dispensary, school, office, …

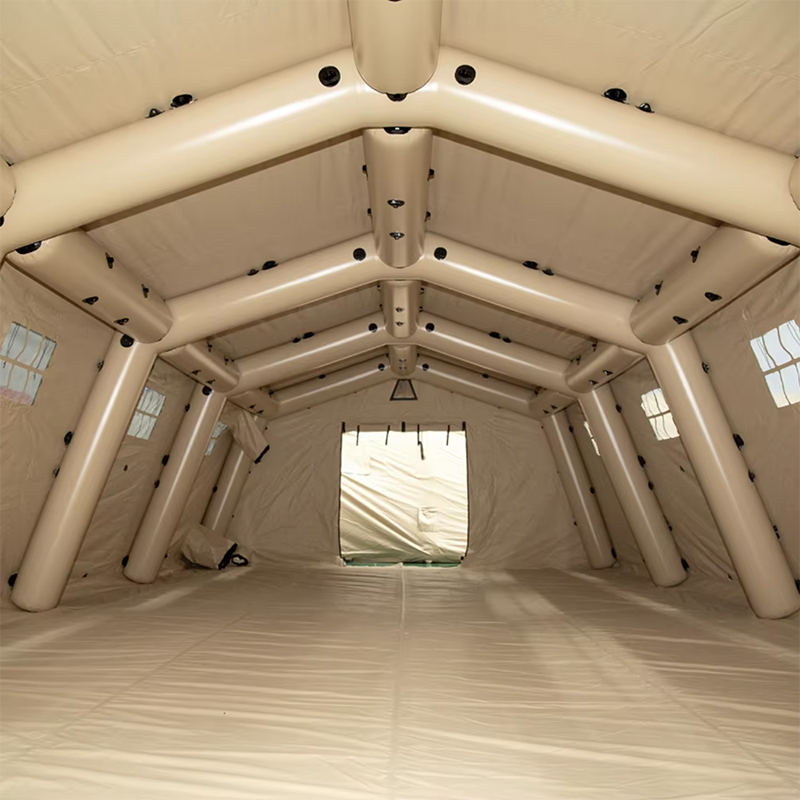

Ready to use within minutes, this series is the ideal solution for all emergency situations. Durable, they can be efficiently deployed on any type of terrain. Main beams and ridge beams inflatable, made of airtight double-sided PVC coated polyester fabric, fixed to the cover and floor.
Eaves and purlins are made of aluminum. Each supported frame is connected with each othe with separate chamber locking system for . Individual frames can be replaced quickly and easily.
The frame is manufactured from high-frequency welded grey PVC. On the left and right of the eaves, aluminium tubes are used to reinforce the frame.
Easy replacement of cover and frame. The tents can be set up in 4-7 minutes, depending of the tent size. A pressure relief valve prevents excessive pressure in the frame.

VIEW MORE

Specifications
Item No.	LPTAG56123
Item Name	Low-Pressure 5.6×12.35m Multipurpose Inflatable Tent
Dimensions	Length×Width Outer Tent	5.6×12.35 m
	Central Height Tent	2.80 m
	Side Wall Height	2.15 m
	Inner Surface Area	69.00 m²
	Central Height Inner Tent	2.55 m
	Inner Side Wall Height	1.80 m
Material	Frame Fabric	PVC 1000 gr/sqm
	Roof Cover	High-quality PVC, 620 gr/ sqm
	Floor Cover	Made out of PVC 550 gr/sqm
	Flooring	The floor is made out of PVC polyester fabric, colour grey
	Turbo Blower	Engine type: 2 motor turbo blower Airflow rate: 2×60 1/s Voltage: 220-240 V/50 Hz Weight: 1.95
	Set up Time	Standard compressor: approx. 260 sec/ 0.15 bar Turbo compressor: approx. 240 sec/ 0.25 bar
	Set up Time	Compressed air bottles: approx. 95 sec/ 0.3 bar
Accessaries	Ground Anchors	made out of steel, galvanised, Length: 30cm
	Storm Wire	Outer tent, inner tent frame, accessories and hammer
	Repair Kit	1 piece
	Pump	Valves for blowers and / or compressed air bottles
Packing	Packing Unit	Carrybag
	Content	Outer tent, inner tent frame, accessories
	Packed QTY per Packing Unit	1 piece
	Dimensions \| Weight \| Volume of Packing Unit	140×100×100 cm \| 288 kg \| 1.4 m³
	Packed QTY per 20ft DC Ctn	20
	Packed QTY per 40ft DC Ctn	41
	Packed QTY per 40ft HC Ctn	49
	FOB Shanghai
Additionals	Ventilation holes
	Partition wall
	Electrical equipment (Distribution boxes, lighting systems,cables...)
	Heating, ventilation, air conditioning - System (HVAC)
	Complete camp solution, including supply, installation,maintenance and much more
