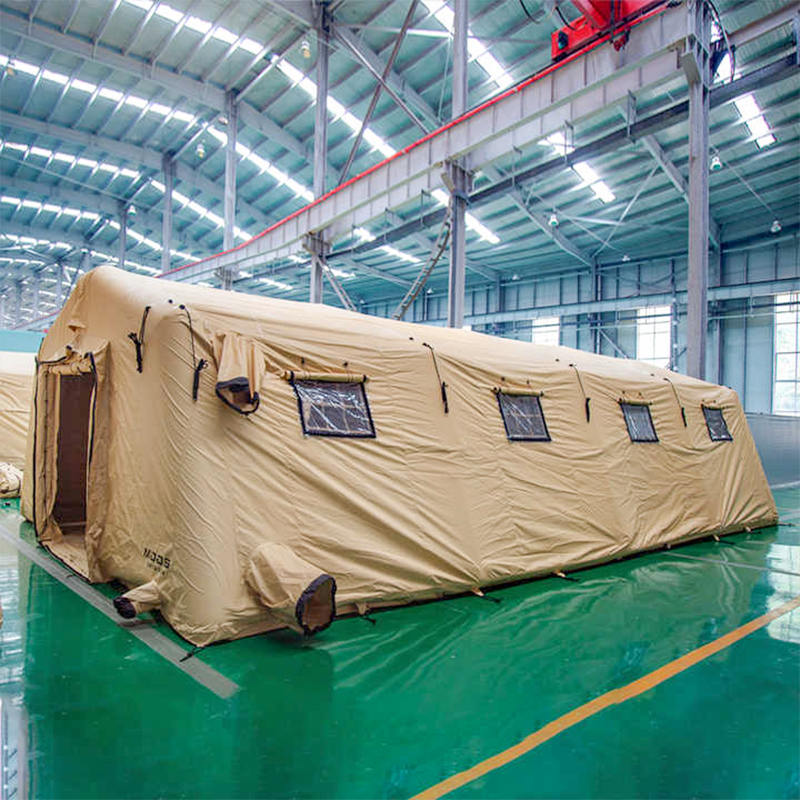

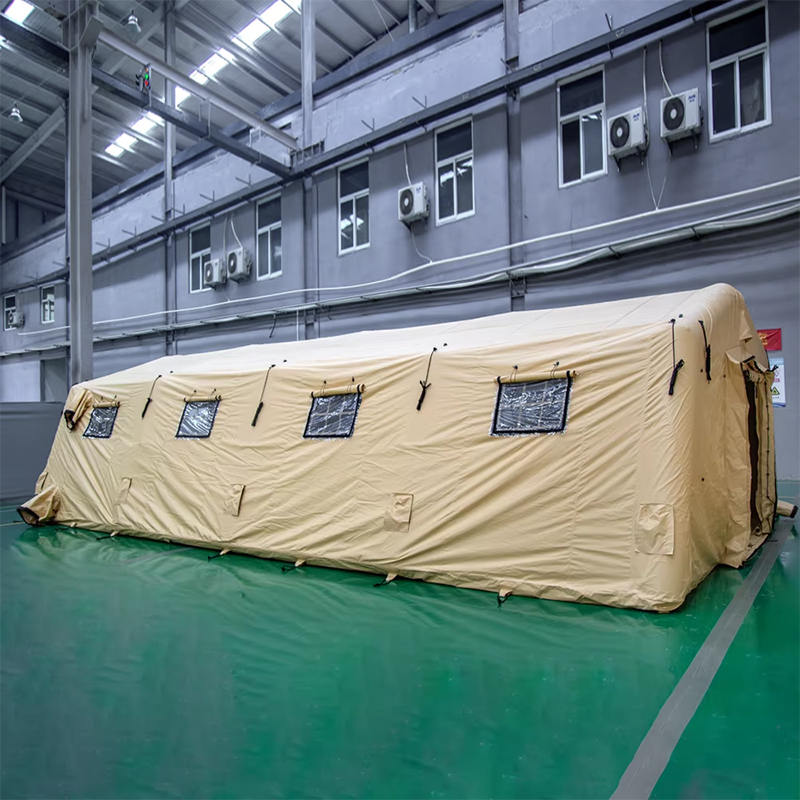

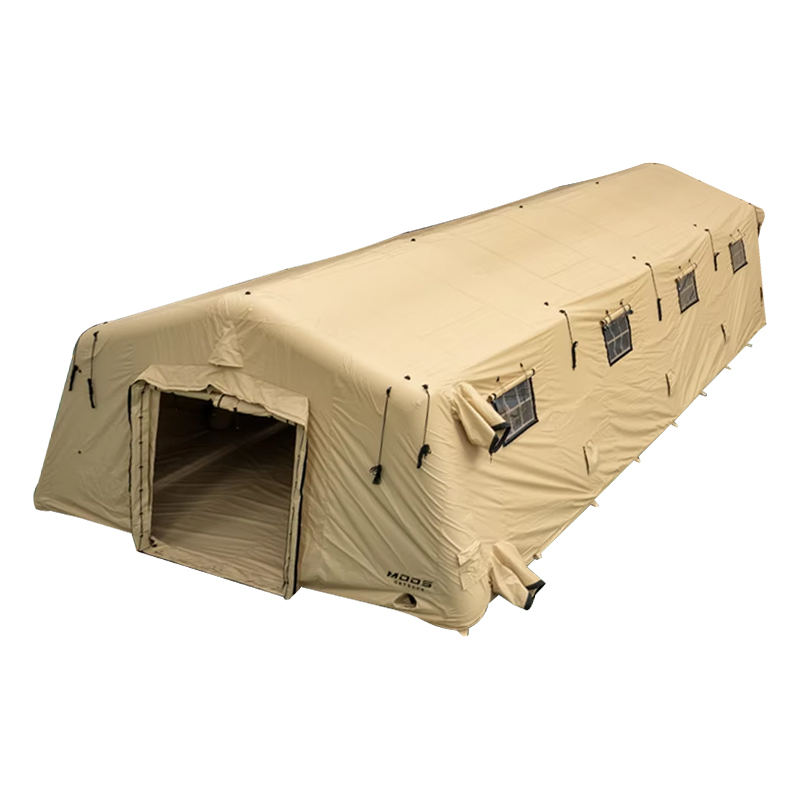

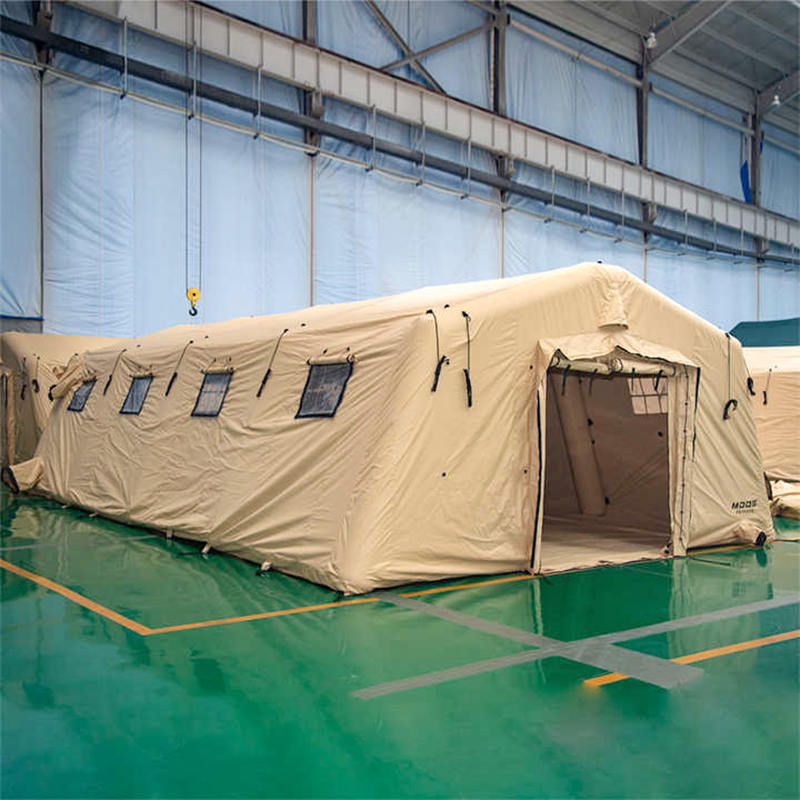

5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent

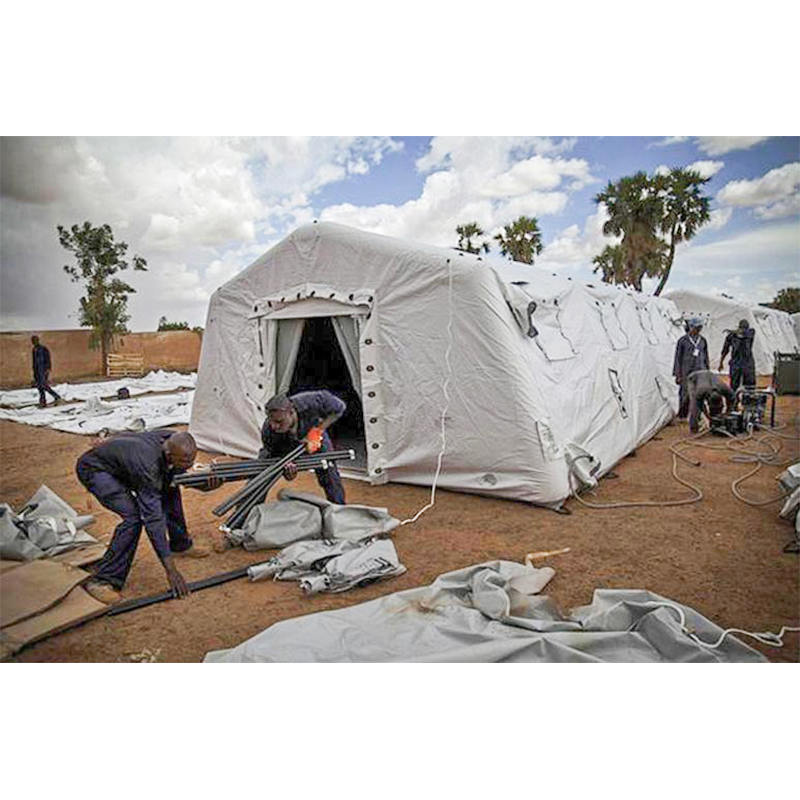

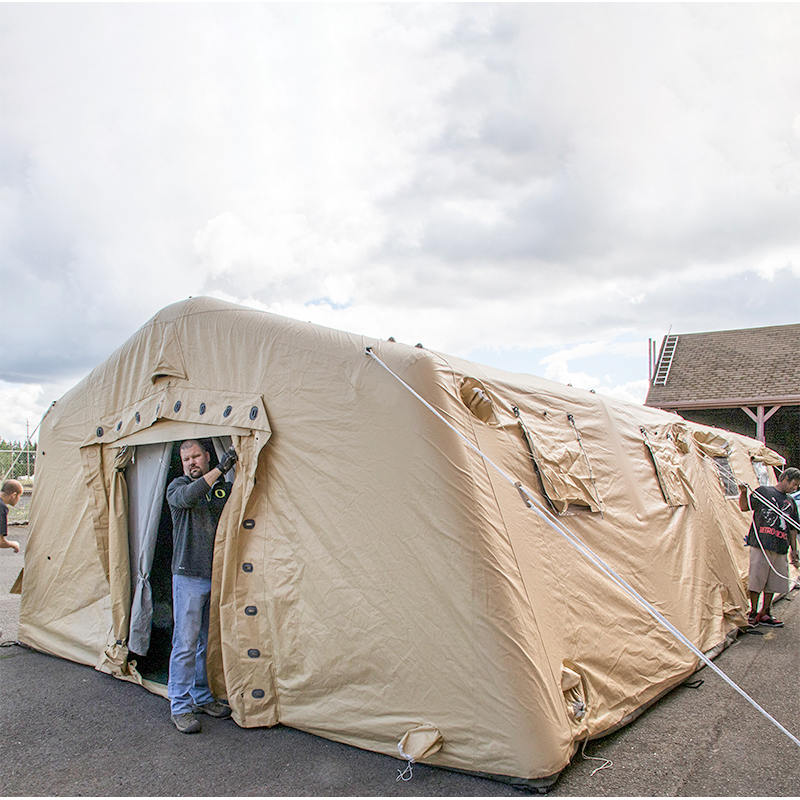

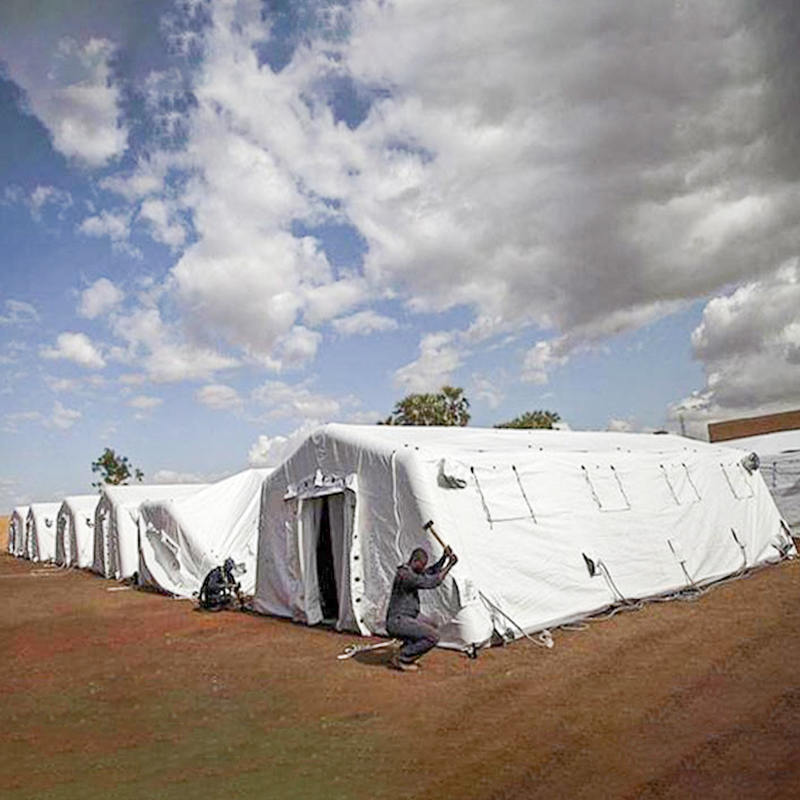

A good and quick respond shelter for emergency situations.

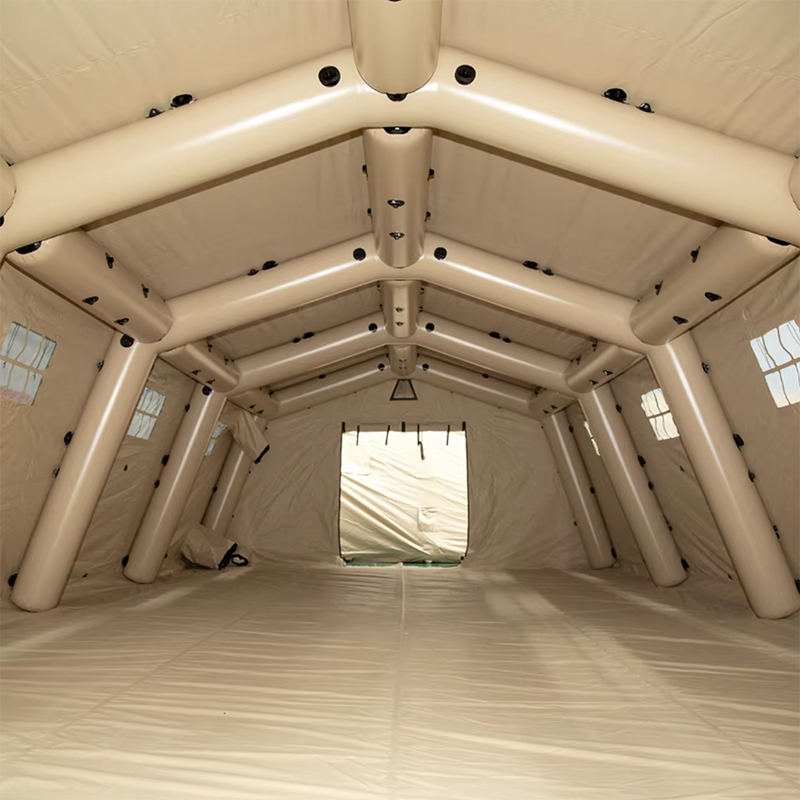

Ready to use within minutes, this series is the ideal solution for all emergency situations. Durable, they can be efficiently deployed on any type of terrain. Main beams and ridge beams inflatable, made of airtight double-sided PVC coated polyester fabric [1,100 g/m²], fixed to the cover and floor.
Eaves and purlins are made of aluminum. This Series consists of a separate chamber locking system for each supported frame. Each frame equipped with a valve to inflate and deflate the shelter as well as pressure relief valves. Individual frames can be replaced quickly and easily.
The frame is manufactured from high-frequency welded grey PVC. On the left and right of the eaves, aluminium tubes are used to reinforce the frame.
Easy replacement of cover and frame. The tents can be set up in 4-7 minutes, depending of the tent size. A pressure relief valve prevents excessive pressure in the frame.

VIEW MOREYangzhou Mailenda Outdoor Products Co., Ltd.
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
  • 5.6x9.95m Multipurpose Medium Rapid Deployment Shelter Low-Pressure Inflatable Tent
01Description 02Application 03Inquiry
Specifications
Item No. LPTAG56995
Item Name Low-Pressure 5.6×9.95m Multipurpose Inflatable Tent
Dimensions Length×Width Outer Tent 5.6×9.95 m
Central Height Tent 2.80 m
Side Wall Height  2.15 m
Inner Surface Area  56.00 m²
Central Height Inner Tent  2.55 m
Inner Side Wall Height  1.80 m
Material Frame Fabric PVC 1000 gr/sqm
Roof Cover High-quality PVC, 620 gr/ sqm
Floor Cover Made out of PVC 550 gr/sqm
Flooring The floor is made out of PVC polyester fabric, colour grey

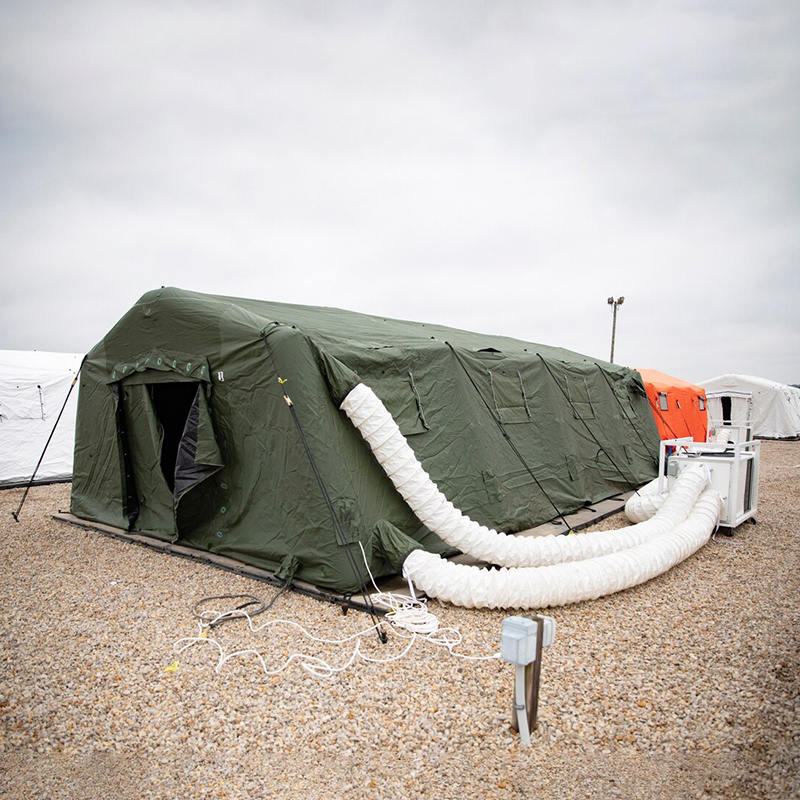

Turbo Blower

Engine type: 2 motor turbo blower

Airflow rate: 2×60 1/s

Voltage: 220-240 V/50 Hz

Weight: 1.95
Set up Time Standard compressor: approx. 260 sec/ 0.15 bar Turbo compressor: approx. 240 sec/ 0.25 bar
Compressed air bottles: approx. 95 sec/ 0.3 bar
Accessaries Ground Anchors made out of steel, galvanised, Length: 30cm
Storm Wire Outer tent, inner tent frame, accessories and hammer
Repair Kit 1 piece
Pump Valves for blowers and / or compressed air bottles
Packing Packing Unit  Carrybag
Content Outer tent, inner tent frame, accessories
Packed QTY per Packing Unit 1 piece
Dimensions | Weight | Volume of Packing Unit 130×100×88 cm | 234 kg | 1.3 m3
Packed QTY per 20ft DC Ctn  22
Packed QTY per 40ft DC Ctn  45
Packed QTY per 40ft HC Ctn 52
FOB Shanghai
